In the box:
Stealth Unit
Carbon Block Cartridge
2 Hose Clamps
2 Push to Connect w/0.375" Barb Adapters & 2 Push to Connect w/0.5" Barb Adapters
4 Installation Screws
12v Power Cable
2 Push to Connect w/0.375" Barb Adapters & 2 Push to Connect w/0.5" Barb Adapters
4 Installation Screws
12v Power Cable
Unless noted, each of our Stealth Systems contains the same items inside the box. The outline drawings are not exact representations of every Stealth.
Product Details & Specs
The Guzzle H2O Stealth 2x10 features a 3 stage water filtration and purification system that is ideal for larger onboard tanks or extended off-grid living.
Stage 1 is a Sediment Pre-Filtration process that keeps sediment and particulate out of your water system.
Stage 2 is a Carbon Block Filtration process that absorbs chlorine, chemicals, and contaminants. This stage leaves your water tasting great.
Stage 3 is an LED Ultraviolet C Purification process that inactivates at least 99.99% of bacteria, protozoa, and viruses. This stage makes your water safe to drink.
Stealth 2x10 Specifications:
- POINT OF USE OR WHOLE HOUSE SYSTEM: Increased filtration treats larger volumes of water. Point-of-use or whole house.
- HIGH FLOW: Recommended flow rate 2.2 gallons (8L)***, minimal 3-5 psi pressure drop
- PROVEN TECHNOLOGY: LED UV-C purification unit 3rd party tested to inactivate 99.99% of bacterial, protozoa, and viruses*and is NSF 55 listed
- EFFECTIVE FILTRATION: 0.5 micron Activated Carbon Block filtration is highly effective at reducing sediment, chlorine taste and odor, VOCs, NSF 41 emerging contaminants, lead, mercury, and other chemical contaminants**
- PREFILTER STAGE: Extra sediment filter preserves and extends life of carbon filter to treat higher volumes of water
- LOW POWER CONSUMPTION: Efficient LED with Instant ON / OFF UV technology conserves battery power, 0.9 amp when active
- LOW MAINTENANCE COSTS: Filter set capacity up to 1000 gallons or 6 months, low cost replacement available worldwide. UV is maintenance free - no bulbs to replace.=
- RUGGED TECHNOLOGY FOR MOBILE & OFF-GRID USE: Sturdy construction, solid state electronics
- APPROVED: All components NSF listed or FDA approved materials
- WARRANTY: 2 year warranty
- 12v DC Power
DIMENSIONS: 14" x 5.3" x 14.98"
IN THE BOX: complete install kit: I/O 0.375" Push to Connection w/0.375" and 0.5" barb adapters, 15' power cable
*Based on 3rd party testing performed according to the United States EPA Ultraviolet Disinfection Guidance Manual
**Will not remove heavy metals or toxins.
***10 mJ/cm^2 UV dose; 30 mJ/cm^2 @ 1.4 gpm
Designed and assembled in USA
Stealth Comparison Chart
Stealth FAQs

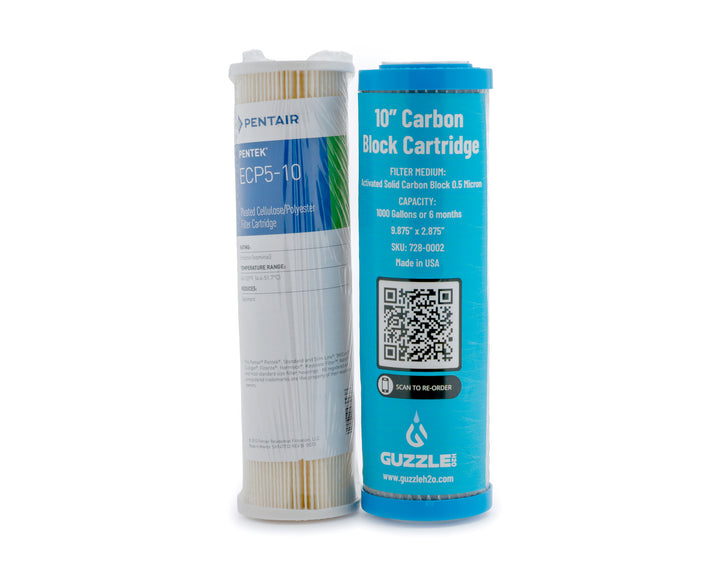

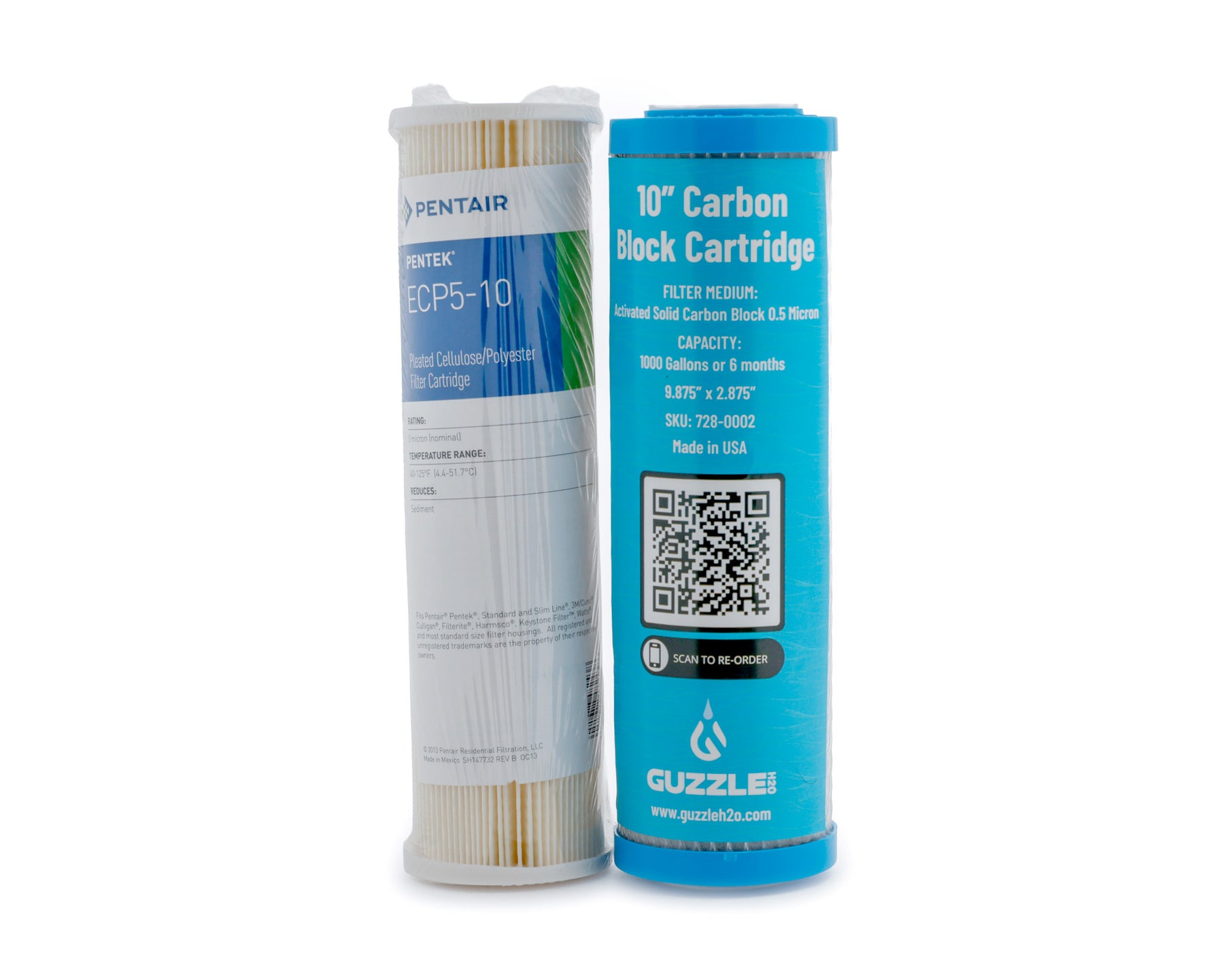

The only consumable is the carbon block cartridge. They're rated for 1000 gallons of city water or 6 months.
We have ours sourced in the US with the best formulation we know, which you can order here, or they're a standard size and available at major retailers.
Stealth systems must be winterized. For instructions, please visit our Manuals & Resource page.
We recommend the 10" model if you have room. The flow is a bit higher and it offers more filtration surface area. Many vehicles do not have room for a 10" model though, which is why we offer both. Most vans will choose a 5.
No. In both cases, the carbon block filter should be changed out at 6 months or 1000 gallons.
Each of our 5" models has a flow rate of 1.75 gallons per minute.
Our 10" models have a flow rate of 2.2 gallons per minute.
